#kamisukareview – Colorful Technology Company Limited announces its latest line of Intel motherboards with Intel Z490 chipsets – iGame Z490 VULCAN X V20 motherboards and CVN Z490 GAMING PRO V20. Designed to support the latest 10th generation Intel Core processors, this motherboard has advanced technology to create a cool desktop PC for gaming performance and high-performance content creation.
For faster network performance, the latest COLORFUL Z490 series motherboards are equipped with the latest Wi-Fi 6 and 2.5 Gigabit LAN standards. This motherboard also supports a cool look with futuristic style equipped with RGB lighting. This unit also has advanced thermal technology to keep the system running smoothly and stably.
The iGame Z490 VULCAN X V20 and CVN Z490 GAMING PRO V20 motherboards will be available on the market starting April 10, 2020 and are priced at US $ 279 and US $ 179, respectively.

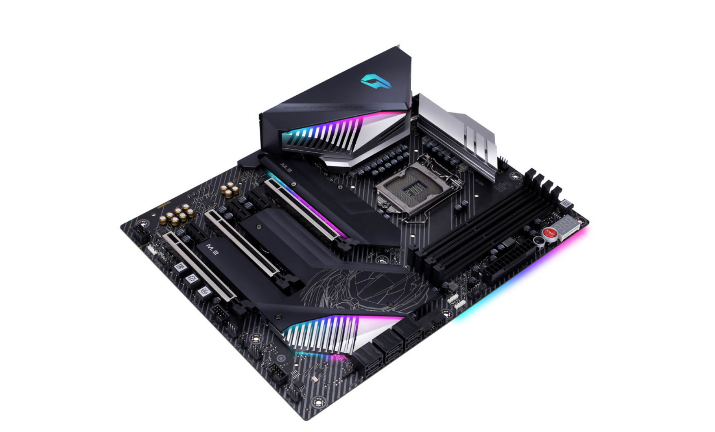

iGame Z490 Vulcan X V20: Serious Power for Power Users
The iGame Z490 motherboard on the Vulcan X V20 is equipped with serious power to knock out triple-A games and the most demanding workload of content creation with a combination of the latest technology and advanced thermal cooling. The iGame Z490 Vulcan X V20 supports up to 10th generation Intel Core processors and a 12 + 2 power phase design that offers stunning CPU overclocking for top-level users.
In addition, this product supports CyberPunk's futuristic cool style with immersive RGB lighting in several lighting zones. This motherboard has a dual Turbo M.2 slot with Intel Optane technology that supports the latest and fastest NVMe drives.
To play games without lag, the iGame Z490 Vulcan X V20 is equipped with an Intel 2.5 Gigabit LAN and an Intel Wi-Fi 6. wireless network.
· 14-phase I.P.P iGame Pure Power: 12 + 2 Power Phase design with 8 + 4-pin ATX power connector to provide stunning overclocking stability to generation 10 Intel Core processors.
· Silver Shark 2.0 Cooling Armor: made using advanced aluminum extrusion, the heatsink armor has an enhanced air fin design that increases the contact area giving better heat dissipation.
IGame Vacuum Heating Tube: The COLORFUL VRM MOSFET Heatsink with an improved heat transfer efficiency that effectively reduces the temperature of the power supply in CPU overclocking.
· COLORFUL Advanced BIOS: Update BIOS without CPU and memory. The BIOS has a simple mode that offers the average user an easy-to-use BIOS interface and an advanced mode that offers full functionality that can meet the needs of top-level users.
· Intel Networking: The latest Intel I225-V 2.5Gigabit LAN controller and Intel AX201 Wi-Fi 6 wireless network card provide a very fast network for playing games and content creation.

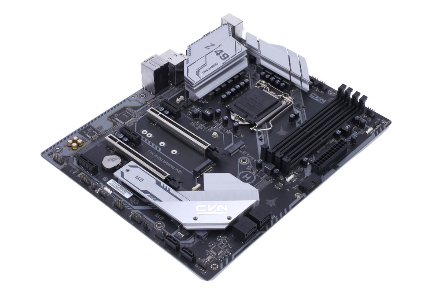

CVN Z490 GAMING PRO V20: Ultimate Gaming Motherboard
CVN Z490 GAMING PRO V20 is the ultimate gaming motherboard that supports all the important features for building a high-performance gaming PC. This motherboard supports up to 10th generation Intel Core processors with 10 cores and is equipped with a 10-power phase design.
This motherboard has the latest iGame Dynamic Light software that can control RGB lighting and synchronization with other devices that support ARGB. CVN Z490 GAMING PRO V20 provides immersive gaming audio with the Realtek HD audio chip which has Hi-Fi Audio Chip Guard and Nichicon Audio Capacitor to provide pure high definition audio.
· IGame Dynamic Light Software: Controls RGB lighting support connected to three 5V 3-Pin ARGB and two 12V 4-Pin RGB connectors from the motherboard. This software offers complete customization with other devices that support ARGB.
· Hi-Fi Audio and Golden Line Audio: Realtek Audio Chip with Hi-Fi Audio Chip Guard to eliminate interference and provide pure high-definition sound while Golden Line Audio effectively reduces high frequency interference.
· Nichicon Audio Capacitor: A premium level capacitor that provides high quality sound.
|Model:||iGame Z490 Vulcan X V20||CVN Z490 GAMING PRO V20|
|CPU:||Intel® 10th Generation Core ™ Processor / 10-Core (including K-Series) Support||Intel® 10th Generation Core ™ Processor / 10-Core (including K-Series) Support|
|Memory:||4 x DDR4 (OC Memory Support to 4000MHz)||4 x DDR4 (OC Memory Support to 4000MHz)|
|VGA SLOT:||3 x PCI Express x16 (Gen3) (x8 + x8 + x4)||2 x PCI Express x16 (Gen3) (x16 + x4)|
|Expansion Slots:||3 x PCIE x1||3 x PCIE x1|
|Video Output||DP + HDMI||DP + HDMI|
|USB Port:||2 x USB 1.1 ports (For BIOS update)||2 x USB 2.0 ports|
|(REAR PANEL I / O)||2 x USB 3.2 Gen2x1 ports (type A) 1 x USB 3.2 Gen2x1 ports (type A) 1 x USB 3.2 Gen2x1 ports (type C) 2 x USB 3.2 Gen1x1 ports||2 x USB 2.0 ports1 x USB 3.2 Gen2x1 ports (type A) 1 x USB 3.2 Gen2x1 ports (type C) 2 x USB 3.2 ports1 Gen1x1 ports|
|USB Port:||2 x Front USB 3.2 Gen1x1||2 x Front USB 3.2 Gen1|
|(INTERNAL I / O)||2 x Front USB 2.0||2 x Front USB 2.0|
|SATA Ports:||6 x SATA3.0||6 x SATA3.0|
|M.2 / mPCIE / mSATA?||1 x M.2 Slot (Support Type 2230 WiFi-6 / BT) CNVi 2 x M.2 Slot (Support Type 2242/2260/2280 SSD) a) NGFF (Type 2242/2260/2280): Support PCIe x4 SSD & Intel® Optane Technologyb) NGFF1 (Type 2242/2260/2280): Support PCIe x4 SSD & Intel® Optane Technology & Support M.2 SATASSD||1 x M.2 Slots (Support Type 2230 WiFi-6 / BT) 2 x M.2 Slots (Support Type 2242/2260/2280 SSD) a) NGFF (Type 2242/2260/2280): Support PCIe x4 SSD & Intel ® Optane Technologyb) NGFF1 (Type 2242/2260/2280): Support PCIe x4 SSD|
|Optane® Technologies support||Yes||Yes|
|LAN:||Intel I225V 2.5Gbit LAN||Realtek RTL8111H 1Gbit LAN|
|Audio Chip:||8.1 Realtek ALC1220 8-CH HD||Realtek ALC892 8-CH HD|
|Power Supply:||12 + 2 Power Phase (TDP: 280W)||10 Power Phase (TDP: 125W)|
|Dimensions||305 x 244 mm||305 x 244 mm|
|RGB lighting||Support||Solid Color|
